What Is a Beam Clamp Swivel Used For?
A Beam Clamp Swivel is used to connect scaffolding tubes to steel beams at adjustable angles. Unlike fixed clamps, it rotates smoothly, so installers can align tubes accurately without stressing the structure. As a result, teams achieve safer, faster, and more flexible scaffold setups on site.
As a manufacturer of drop forged scaffolding couplers, AMCO Exports supplies swivel beam clamps built for industrial and infrastructure applications where precision and load safety matter.

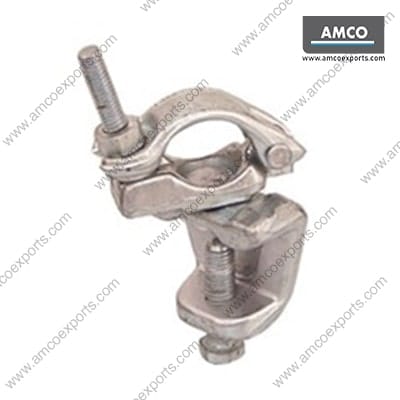

The Drop Forged Beam Clamp – Swivel delivers flexible anchoring for scaffolding tubes on structural steel beams. Its swivel mechanism allows precise angle adjustment, while the high-strength forged body ensures a secure grip under load. Designed for 48.3mm OD scaffolding tubes, this clamp is ideal for complex scaffolding configurations where alignment, stability, and safety are critical.
Explore our full range of Scaffolding Couplers & Clamps , including fixed and swivel beam clamps for steel structures.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Drop Forged Clamp Swivel |
| Tube Compatibility | 48.3mm OD |
| Nut Size | 1/2″ BSW Thread × 21mm |
| Flange Nut Options | 22mm / 23mm |
| Tee Bolts | 1/2″ BSW (Mild Steel / Boron Steel) |
| Hex Bolt | 5/8″ × 76mm Mild Steel |
| Finish | Galvanized / Corrosion Resistant |
| Application | Scaffolding to steel beam connection |
Why Contractors Choose a Beam Clamp Swivel
Here’s the thing—steel beams are rarely perfectly aligned. Because of that, fixed clamps often create installation challenges. A swivel beam clamp solves this problem.
Thanks to its rotating design, the clamp allows angular adjustment while maintaining a firm grip on the beam. Consequently, contractors reduce installation time, improve alignment, and enhance overall site safety.
Moreover, the drop forged steel body delivers consistent load performance, even in demanding conditions.
Key Features of Drop Forged Beam Clamp Swivel
-
High-strength drop forged steel construction
-
Corrosion-resistant surface finish for longer service life
-
Smooth swivel action for angled tube positioning
-
Compatible with 48.3mm standard scaffolding tubes
-
Designed for heavy-duty industrial and commercial use
Where Beam Clamp Swivels Are Commonly Used
This clamp is widely used in:
-
Building and high-rise construction
-
Infrastructure repair and retrofitting
-
Industrial shutdown and maintenance work
-
Beam-supported scaffolding platforms
Because it avoids drilling or welding on steel beams, it helps maintain structural integrity while creating stable scaffold connections.
Where and Why the Swivel Design Matters
The Drop Forged Beam Clamp – Swivel plays a critical role when scaffolding must connect to beams at non-standard angles.
Unlike fixed beam clamps, the swivel mechanism allows controlled tube rotation. Therefore, it works especially well in:
-
Complex steel frameworks
-
Irregular beam layouts
-
Retrofit and maintenance projects
In short, it delivers secure anchoring where flexibility is essential.
From Scaffolding Systems / Cuplock page
When scaffolding must be anchored to steel beams, Scaffolding Couplers & Clamps ensure safe load transfer.
📞 Contact us today for pricing, specifications, or export inquiries.
Beam Clamp Swivel – FAQs
Q1: Why choose a swivel beam clamp instead of a fixed one?
A swivel beam clamp allows angled tube positioning, which makes it ideal for irregular beam placements and complex scaffolding layouts.
Q2: What tee bolt material options are available?
We offer tee bolts in Mild Steel and high-strength Boron Steel, depending on load requirements.
Q3: What are the hex bolt specifications?
The clamp includes a 5/8″ × 76mm Mild Steel hex bolt with a 21mm head for secure beam fastening.
Q4: Where are swivel beam clamps typically used?
They are commonly used in industrial scaffolding, power plants, refineries, bridges, and steel-intensive construction projects.
Q5: Are you direct manufacturers of swivel beam clamps?
Yes. AMCO Exports is a direct manufacturer and exporter of drop forged scaffolding couplers, supplying domestic and international markets.
