Flip Pin Lock / Flip Lock Pin (Gravity Flip Lock Pin) – Frame Scaffolding Accessory

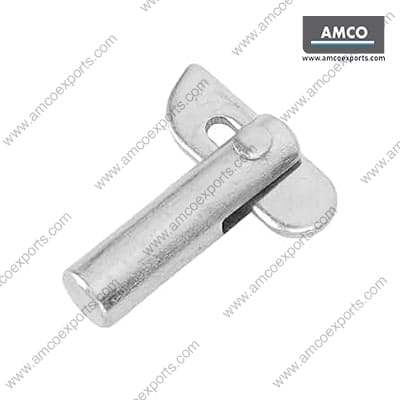

H frame flip pin is a gravity locking pin used in H-frame scaffolding systems to secure cross braces and maintain rigid frame alignment during construction.This h frame flip pin allows fast locking and removal without tools, making it ideal for repeated H-frame scaffolding assembly.
AMCO Exports manufactures both machined flip pins and forged flip pins for long service life and reliable site performance. Moreover, we supply bulk orders with export packing, custom sizes, and consistent quality.
Available Types
-
300/A – Machined Flip Pin (Precision Type)
-
300/B – Forged Flip Pin (Heavy Duty Type)
Standard Sizes
-

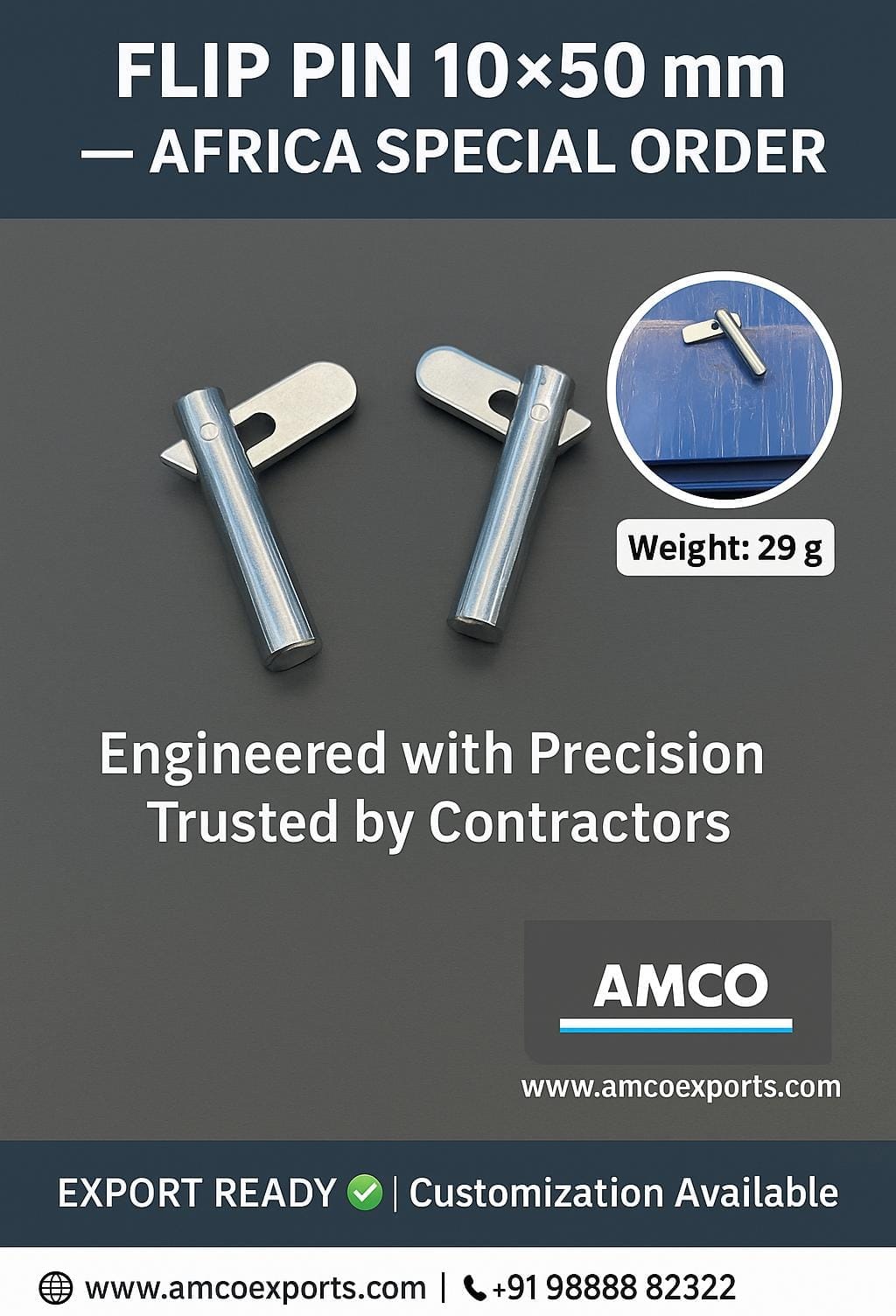

10mm × 50mm
-
12mm × 50mm
-
16mm × 50mm
Finish Options
-
Electro Zinc Plated (EZP)
-
Galvanized (on request)
Technical Specifications -H Frame Flip Pin
| Specification | Details |
|---|---|
| Product Name | Flip Pin |
| Type | Gravity Flip Lock Pin |
| Models | 300/A (Machined), 300/B (Forged Head) |
| Standard Size | 10×50mm (other sizes available) |
| Weight | 29g (10×50mm), 88g (Forged variant) |
| Finish | Zinc Plated |
| Use | Locks cross braces in H-Frame scaffolding |
| Alternate Names | Brace Lock, Snap Lock Cotter Pin |
| Customization | Available |
| Manufacturer | AMCO Exports (India) |
Size & Weight Chart -H Frame Flip Pin
Below weight chart helps buyers compare models clearly. It also confirms actual production quality.
| Size / Variant | Application Type | Approx. Weight |
|---|---|---|
| 10mm × 50mm | Light model | 29 g |
| 12mm × 50mm | Standard light model | 44 g |
| 12mm × 50mm | Standard medium model | 65 g |
| 12mm × 50mm | Medium-heavy model | 80 g |
| 16mm × 50mm | Forged standard model | 86 g |
| 16mm × 50mm | Forged heavy duty model | 88 g |
| Special export model | Extra heavy / custom | 119 g |
✅ Note: Weights are based on actual measured pieces. Minor tolerance may apply in bulk production.
Flip Pin Price / Flip Lock Pin Price (How Pricing Works)
price depends on size, material, model type, and order quantity.
Price depends on:
-
size (10mm / 12mm / 16mm etc.)
-
type (machined vs forged)
-
finish (EZP / galvanized)
-
bulk quantity / MOQ
-
packing requirement (local vs export)
📌 For the latest manufacturer quotation, contact AMCO Exports.
Why Buy H – Frame Flip Pins from AMCO Exports?
AMCO Exports supplies consistent quality because we manufacture scaffolding components for contractors and exporters. So you get stable fitment and faster dispatch.
You get:
-
manufacturer-controlled quality
-
uniform plating finish
-
accurate pin fitment
-
bulk-ready packing
-
export supply support
Why Contractors Prefer AMCO H Frame Flip Pin
Flip pins look small, but they decide connection safety in H-frame scaffolding. Therefore, we focus on accurate dimensions, proper locking action, and consistent finish.
Key Advantages
-
Quick locking and unlocking without tools
-
Strong brace holding for rigid frame structures
-
Better safety compared to loose cotter pins
-
Easy stacking and alignment on site
-
Reusable and durable for repeated projects
What is a H Frame Flip Pin Used For?
A Flip Pin locks cross braces to H-frame scaffolding. It also supports quick fixing in shuttering and temporary structures where speed matters.
Common Uses
-
H-frame scaffolding cross brace locking
-
Frame staging connections
-
Formwork & shuttering temporary support systems
-
Infrastructure and industrial access platforms
-
Export scaffolding accessory kits
Applications of Gravity Flip Lock Pin in Frame Scaffolding
A Gravity Flip Lock Pin operates through a snap-lock action. So workers can insert and lock it instantly. This improves productivity on large sites.
Used for:
-
Locking braces to frame scaffolding
-
Preventing vibration loosening
-
Fast dismantling after slab work
-
Repeated staging assembly in projects
Manufacturing Details (AMCO Exports)
AMCO Exports is a trusted scaffolding manufacturer in India (Since 1989). We make flip pins with strict inspection because fitment issues create site delays.
What we control in manufacturing
-
pin diameter consistency
-
locking flap fitment
-
finish uniformity
-
weight stability (for quality checking)
-
export packing & bulk loading readiness
FAQ -H Frame Flip Pin
Q1) What is a flip pin used for?
A flip pin is used to lock cross braces in frame scaffolding systems, especially H-frame scaffolding. It provides quick locking without tools.
Q2) What is the difference between Flip Pin 300/A and 300/B?
300/A is a machined model for precision fitment.
300/B is a forged flip pin model for heavier duty use and longer life.
Q3) Why should I choose a gravity flip pin?
Because it locks quickly, resists vibrations, and saves time on erection and dismantling. Therefore, it improves site speed and safety.
Q4) Do you supply custom sizes in flip pins?
Yes. AMCO Exports supplies custom flip pin sizes and weights as per project requirement and export orders.
Q5) Are you manufacturer and exporter of flip pins?
Yes. AMCO Exports is a Flip Pin manufacturer and exporter from India, supplying bulk orders with export packing.
