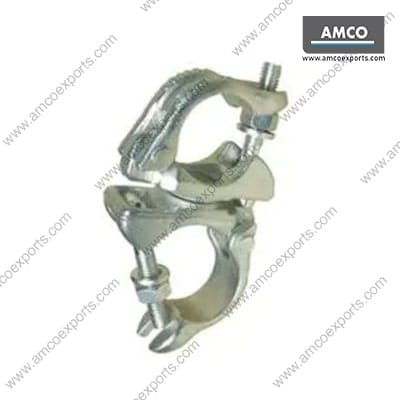

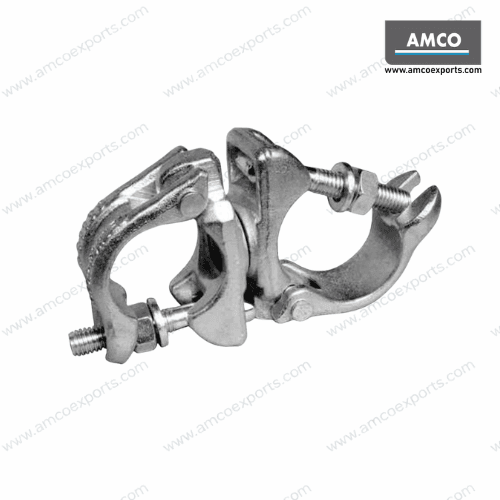

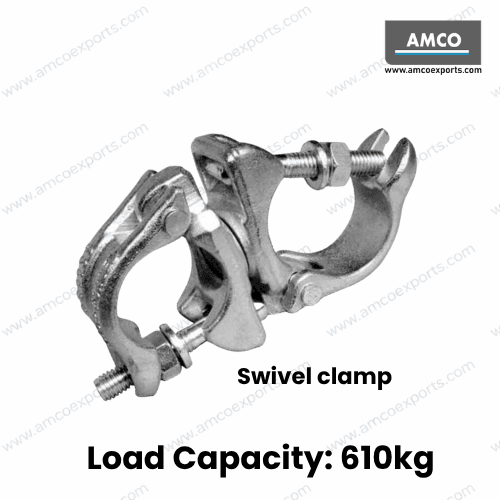

Swivel Coupler (Drop Forged) – Scaffolding Coupler Manufacturer India
The Swivel Coupler from AMCO Exports is a heavy-duty scaffolding fitting used to connect two scaffold tubes
at any angle. Also searched as a Forged Swivel Coupler or Swivel Coupler Scaffolding Clamp,
this coupler provides strong grip and stable tube locking for construction, industrial maintenance, and infrastructure scaffolding systems.
We manufacture this coupler using drop forged steel, which improves strength and impact resistance for repeated site use.
Additionally, the galvanized finish protects against rust, making it suitable for outdoor and long-duration projects.
As a result, contractors get safe multi-angle connections with better alignment and faster assembly.
Technical Specifications – Swivel Coupler (48.3mm OD)
| Parameter | Specification |
|---|---|
| Product Name | Swivel Coupler (Drop Forged) |
| Type | Adjustable / Swivel Coupler |
| Application / Use | Connects two scaffold tubes at any angle (multi-angle joint) |
| Tube Compatibility | 48.3mm OD scaffolding tubes |
| Material | Mild Steel / Boron Steel (Drop Forged) |
| Tee Bolt | ½” BSW Thread |
| Nut Size | ½” BSW × 21 mm |
| Flange Nut Options | 22 mm / 23 mm |
| Bolt Type Options | Mild Steel Tee Bolt / High Tensile Boron Steel Tee Bolt |
| Finish | Zinc Plated (Corrosion Resistant) |
| Packing | 25 pcs per bag |
| Pallet Packing | 1000 pcs per pallet |
| Suitable For | Scaffolding diagonal bracing, temporary structures, industrial maintenance |
| Standards | BS1139 / EN74 type quality |
Key Features of Drop Forged Swivel Coupler
- Drop forged steel body for high strength and long service life
- Allows tube connections at multiple angles for flexible scaffolding layouts
- Galvanized finish for rust and corrosion resistance
- Precision threading for smooth tightening and secure alignment
- Suitable for diagonal bracing and complex scaffold frameworks
- Manufactured to meet scaffolding quality standards (BS1139 / EN74 type)
Where and Why It Is Used
A Forged Swivel Coupler is essential when scaffolding requires adjustable angle joints. Unlike fixed right-angle couplers,
this coupler allows workers to connect tubes at different angles. Therefore, it is commonly used in diagonal bracing and
structures where alignment changes on-site.
Typical applications:
- Diagonal bracing in scaffolding
- Curved or irregular scaffold structures
- Industrial maintenance platforms
- Temporary frameworks and access scaffolding
- Refinery, power plant, and infrastructure work
Because it handles movement and site load conditions, the swivel coupler improves stability and reduces scaffold sway.
Swivel Coupler Size (Tube Compatibility)
This coupler supports the standard scaffolding tube size:
✅ Tube OD: 48.3mm (industry standard)
Swivel Coupler Weight
Swivel coupler weight may vary slightly depending on forging design and bolt type.
For exact per-piece weight and packing details, contact AMCO Exports.
Swivel Coupler Price
Price depends on:
- Quantity requirement
- Finish type (galvanized / coating)
- Bolt type (MS / Boron steel)
- Dispatch location
📞 Contact AMCO Exports for
bulk price / project quotation
across India.
FAQ
Q1: What is the main advantage of a swivel coupler?
A: A swivel coupler connects scaffold tubes at any angle, so it provides flexibility for diagonal bracing and complex scaffolding structures.
Q2: What tube size does this swivel coupler support?
A: It supports 48.3mm OD tubes, which is the standard scaffolding pipe size.
Q3: Are high-strength bolt options available?
A: Yes, we offer tee bolts in Mild Steel and high tensile Boron Steel options based on requirement.
Q4: What makes forged swivel couplers more durable?
A: Drop forging improves steel grain structure. As a result, forged couplers provide higher strength and better impact resistance than local cast clamps.
Q5: Do you export swivel couplers internationally?
A: Yes, AMCO Exports supplies scaffolding couplers for domestic contractors and export markets.
Why Choose AMCO Exports?
AMCO Exports (Established 1989) is a trusted scaffolding manufacturer and supplier in India.
Our couplers are used by contractors and infrastructure companies due to:
- Reliable forging quality
- Controlled dimensions for perfect fitting
- Strong grip and safe tightening
- Consistent production for repeat orders
