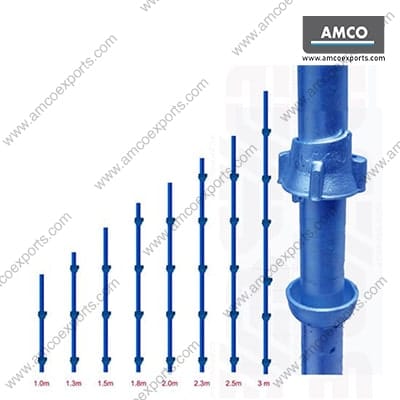

Cuplock Vertical Sizes & Lengths
AMCO Exports supplies Cuplock Verticals in commonly required lengths including 1.8m, 2.0m, 2.3m, 2.5m, 2.8m and 3.0m. Custom lengths can also be discussed for project-specific requirements.
The required vertical length depends on the scaffold arrangement, working height, bay configuration, platform levels, and project design. Customers can share their required dimensions and quantities with AMCO Exports for quotation.
Cuplock Vertical Pipe Weight Chart
The following chart is based on the AMCO Exports Vertical Pipe Weight Chart and uses an approximate pipe weight rate of 4.433 kg/m.
Important: The figures below represent the pipe-weight reference. The final weight of a complete Cuplock Standard can vary because the finished component includes the cup assemblies and other manufacturing features.
| Length (m) | Length (mm) | Approx. Pipe Weight (kg) |
|---|---|---|
| 0.50 | 500 | 2.217 |
| 1.00 | 1000 | 4.433 |
| 1.50 | 1500 | 6.650 |
| 2.00 | 2000 | 8.866 |
| 2.50 | 2500 | 11.083 |
| 3.00 | 3000 | 13.299 |
| 3.50 | 3500 | 15.516 |
| 4.00 | 4000 | 17.732 |
| 4.50 | 4500 | 19.949 |
| 5.00 | 5000 | 22.165 |
| 6.00 | 6000 | 26.598 |
Vertical Pipe Weight Rate: approximately 4.433 kg/m.
For example, the chart indicates an approximate pipe weight of 13.299 kg for 3.0 metres. The finished Cuplock Standard weight may differ depending on cup configuration, tube specification, and manufacturing details.
Cuplock Vertical Applications
Cuplock Verticals are used as vertical members in modular scaffolding systems for construction, infrastructure, industrial maintenance, and formwork support applications.
Common applications include building construction, bridge projects, industrial facilities, infrastructure development, and maintenance work where compatible Cuplock scaffolding is required.
- High-rise building construction
- Commercial and residential projects
- Bridge construction
- Flyovers and elevated corridors
- Metro rail projects
- Industrial maintenance
- Oil and gas plants
- Refineries
- Power plants
- Shipyards
- Airport construction
- Petrochemical industries
- Staging and formwork support
- Infrastructure projects
Cuplock Vertical Components & Accessories
A complete Cuplock scaffolding arrangement consists of several compatible components. The vertical standard works together with horizontal ledgers, intermediate transoms, cups, jacks, planks, and connection accessories according to the required scaffold configuration.
Each component serves a specific function within the assembled system, while the vertical members provide the connection points for compatible horizontal and supporting components.
| Component | Purpose |
|---|---|
| Cuplock Horizontal Ledger | Connects vertical standards horizontally and forms scaffold bays |
| Cuplock Intermediate Transom | Supports scaffold boards and working platforms |
| Cuplock Top Cup | Locks compatible ledgers and transoms |
| Cuplock Bottom Cup | Provides the fixed cup connection point |
| Base Jack | Provides height adjustment and levelling |
| Steel Plank | Creates the working platform |
| Spigot / Joint Pin | Connects adjacent vertical standards |
Cuplock Vertical Price in India
The Cuplock Vertical price in India depends on the required length, tube specification, surface finish, order quantity, packaging requirements, and project specifications.
AMCO Exports supplies Cuplock Verticals directly to contractors, scaffolding companies, EPC companies, infrastructure projects, distributors, OEM buyers, and international customers.
- ✔ Direct Manufacturer Pricing
- ✔ Bulk & Project Orders
- ✔ OEM Manufacturing Available
- ✔ Custom Sizes & Specifications
- ✔ PAN India Supply
- ✔ Export Packaging Available
For current pricing, send your required length, quantity, finish, delivery location, and technical specifications to our sales team.
Cuplock Vertical Applications
Cuplock Verticals are used as vertical members in modular scaffolding systems for construction, infrastructure, industrial maintenance, and formwork support applications.
Common applications include building construction, bridge projects, industrial facilities, infrastructure development, and maintenance work where compatible Cuplock scaffolding is required.
- High-rise building construction
- Commercial and residential projects
- Bridge construction
- Flyovers and elevated corridors
- Metro rail projects
- Industrial maintenance
- Oil and gas plants
- Refineries
- Power plants
- Shipyards
- Airport construction
- Petrochemical industries
- Staging and formwork support
- Infrastructure projects
Cuplock Vertical Components & Accessories
A complete Cuplock scaffolding arrangement consists of several compatible components. The vertical standard works together with horizontal ledgers, intermediate transoms, cups, jacks, planks, and connection accessories according to the required scaffold configuration.
Each component serves a specific function within the assembled system, while the vertical members provide the connection points for compatible horizontal and supporting components.
| Component | Purpose |
|---|---|
| Cuplock Horizontal Ledger | Connects vertical standards horizontally and forms scaffold bays |
| Cuplock Intermediate Transom | Supports scaffold boards and working platforms |
| Cuplock Top Cup | Locks compatible ledgers and transoms |
| Cuplock Bottom Cup | Provides the fixed cup connection point |
| Base Jack | Provides height adjustment and levelling |
| Steel Plank | Creates the working platform |
| Spigot / Joint Pin | Connects adjacent vertical standards |
Cuplock Vertical vs Ringlock Standard
Cuplock and Ringlock are both modular scaffolding systems, but they use different connection designs. The Cuplock system uses cup-type connection points, while the Ringlock system uses rosette-type connection points. Their vertical and horizontal members are designed around their respective connection arrangements.
| Feature | Cuplock System | Ringlock System |
|---|---|---|
| Connection Type | Cup Lock | Rosette Lock |
| Vertical Member | Cuplock Standard / Vertical | Ringlock Standard |
| Horizontal Member | Cuplock Ledger | Ringlock Ledger |
| System Design | Modular Cup Connection | Modular Rosette Connection |
| Applications | Construction, Access & Formwork | Construction, Industrial & Access Applications |
The suitable scaffolding system depends on the project design, existing inventory, required configuration, engineering requirements, and customer specifications.
How to Choose the Right Cuplock Vertical
When purchasing a Cuplock Vertical, consider the technical requirements of the complete scaffolding arrangement rather than selecting the vertical length alone.
- Required scaffold height
- Required standard length
- Working load requirements
- Bay spacing
- Platform loading requirements
- Tube specification and wall thickness
- Surface finish
- Compatibility with existing Cuplock components
- Project-specific engineering requirements
- Required quantity and packaging
AMCO Exports can review customer drawings and project specifications for custom Cuplock Vertical requirements.
Cuplock Vertical Manufacturing
AMCO Exports manufactures Cuplock Standards for bulk, OEM, project, and export requirements. Manufacturing requirements can be discussed according to the required length, tube specification, cup configuration, finish, quantity, and customer drawings.
For project-specific requirements, buyers can provide technical drawings or specifications so that the required product configuration can be reviewed before quotation and production.
Cuplock Vertical Standards & Specifications
The existing product specification references BS 1139, EN 74, EN 12811, and project specifications. Compliance requirements should be confirmed against the specific product configuration, material specification, manufacturing requirements, and project documentation before being specified in a purchase order.
| Reference | Application / Requirement |
|---|---|
| BS 1139 | Referenced for metal scaffolding requirements |
| EN 74 | Referenced for scaffold component requirements |
| EN 12811 | Referenced for temporary works and scaffolding performance requirements |
| Project Specifications | Product requirements can be reviewed according to project drawings and technical specifications |
| OEM Manufacturing | Available according to customer drawings and technical requirements |
Why Choose AMCO for Cuplock Vertical Supply?
AMCO Exports supplies Cuplock Standards for contractors, scaffolding companies, infrastructure projects, distributors, OEM buyers, and export customers.
- ✔ Manufacturer Since 1989
- ✔ 35+ Years of Manufacturing Experience
- ✔ Manufacturer-Direct Supply
- ✔ Bulk Production Capability
- ✔ Custom Sizes & Project Specifications
- ✔ OEM Manufacturing
- ✔ Export Packaging
- ✔ PAN India Supply
- ✔ International Export Support
Related Cuplock Vertical Components
AMCO Exports supplies a range of Cuplock scaffolding components that can be used with compatible Cuplock systems.
Cuplock Horizontal Ledger
– Connects vertical standards and forms scaffold bays.
Cuplock Intermediate Transom
– Supports scaffold boards and working platforms.
Cuplock Top Cup
– Locks compatible ledgers and transoms.
Cuplock Bottom Cup
– Provides the fixed cup connection point.
Cuplock Ledger Blade
– Connection component used with compatible Cuplock ledgers.
Base Jack
– Provides height adjustment and levelling.
Universal Jack / U Head Jack
– Top support for compatible scaffolding and formwork applications.
Steel Scaffolding Plank
– Provides a working platform.
Complete Cuplock Scaffolding System
– Modular scaffolding solution for compatible construction and access applications.
Frequently Asked Questions
1. What is a Cuplock Vertical?

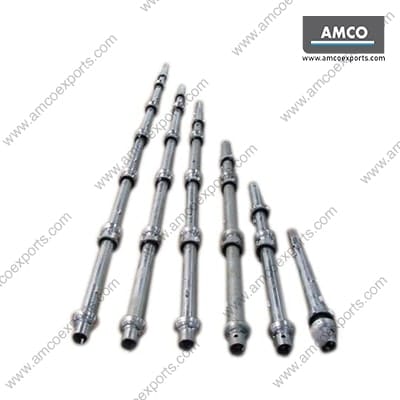

A Cuplock Vertical is the vertical member of a Cuplock scaffolding system. It connects with compatible ledgers and transoms through the cup connection arrangement to form the vertical framework of the scaffold.
2. What sizes of Cuplock Verticals are available?
AMCO Exports lists standard Cuplock Vertical lengths of 1.8m, 2.0m, 2.3m, 2.5m, 2.8m and 3.0m. Custom lengths can also be discussed according to project requirements.
3. What is the tube diameter of a Cuplock Vertical?
The specified tube diameter is 48.3 mm OD.
4. What is the weight of a Cuplock Vertical?
The AMCO vertical pipe chart provides a pipe-weight reference of approximately 4.433 kg/m. For example, the 3.0m pipe reference weight is approximately 13.299 kg. The finished Cuplock Standard weight can vary depending on the cup configuration and manufacturing specification.
5. What finishes are available for Cuplock Verticals?
Cuplock Verticals can be supplied in Self Finish, Painted, or Hot-Dip Galvanized (HDG) finishes, subject to the required specification.
6. What is the load capacity of a Cuplock Vertical?
The current product specification lists a reference range of 20–60 kN. Actual capacity depends on the complete scaffold design, tube specification, bracing arrangement, bay spacing, height, and engineering calculations.
7. Can you manufacture custom Cuplock Verticals?
Yes. AMCO Exports can discuss custom lengths, finishes, specifications, OEM requirements, and project-specific manufacturing based on customer drawings and technical requirements.
8. Do you supply Cuplock Verticals for export?
Yes. AMCO Exports supplies Cuplock Verticals for bulk and export requirements. Customers can share the required quantity, specifications, packaging requirements, and delivery destination for quotation.
Get a Quote for Cuplock Vertical
Looking for a Cuplock Vertical manufacturer in India? Send AMCO Exports your required length, quantity, finish, technical specification, and delivery location.
Our team can review your requirement and provide a quotation based on the requested configuration.
