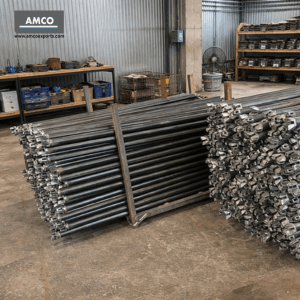

Ringlock Ledger Scaffolding by AMCO Exports is engineered for modular scaffolding systems, providing strong horizontal connections between standards using a wedge-and-rosette mechanism. Our Ringlock Ledger Scaffolding components are manufactured from high-strength steel for fast assembly, reliable load performance, and long service life on construction and industrial sites.
Complete your system with our Ring Lock Accessories including rosettes, wedges, ledger ends, and brace ends for modular scaffolding setups.
Ringlock Ledger Technical Specifications
| Specification | Details |
|---|---|
| Tube Diameter | 48.3 mm (standard O.D.) |
| Tube Thickness | 2.5 / 2.7 / 3.0 / 3.2 / 3.25 mm |
| Material Grade | Q235 / Q355 / S235 / S355 structural steel |
| Surface Finish | Hot Dip Galvanized (HDG) |
| Ledger Ends | Precision cast steel or forged steel |
| Wedge Pin | 6 mm captive wedge |
| Connection System | 8-hole rosette with integrated wedge |
| Standards Compliance | EN 12810, EN 12811, AS 1576, BS 1139, CSA, ANSI |
Standard Ringlock Ledger Lengths (Metric & USA)
| Length (m) |
|---|
| 0.39 |
| 0.73 |
| 1.04 |
| 1.09 |
| 1.40 |
| 1.57 |
| 2.07 |
| 2.57 |
| 3.07 |
Imperial / USA Sizes
| Length |
|---|
| 2’ |
| 3’ |
| 4’ |
| 5’ |
| 6’ |
| 7’ |
| 8’ |
| 9’ |
| 10’ |
(Custom sizes available for bulk orders.)
Types of Ringlock Ledger Scaffolding
| Type | Application |
|---|---|
| O-Type Ledger | Standard horizontal member for plank support |
| U-Type Ledger / Transom | Supports steel planks via U-profile |
| Reinforced / Truss Ledger | Higher load capacity & wider spans |
| Bridging Ledger | Heavy-duty bridging and long-span support |
Ringlock Ledger Load Capacity & Performance
| Parameter | Value |
|---|---|
| Connection Strength | Up to 11.12 kN (≈2500 lbs) per joint |
| Central Load (0.73 m) | Approx. 24 kN |
| Central Load (1.57 m) | Approx. 7.6 kN |
| Typical Applications | Industrial construction, bridging, shipbuilding, facade scaffolding |
Applications of Ringlock Ledger in Construction
• Building construction
• Infrastructure & bridge projects
• Industrial plants & maintenance
• Shipyards
• Commercial facade systems
Ringlock Ledger PDF & Catalogue Download
Looking for Ring lock scaffolding system PDF, Ringlock ledger specifications PDF, or a full Ringlock scaffolding catalogue?
👉 Contact AMCO Exports for technical datasheets, manuals, and product catalogues.
Ringlock Ledger Scaffolding for Sale – Get Latest Price

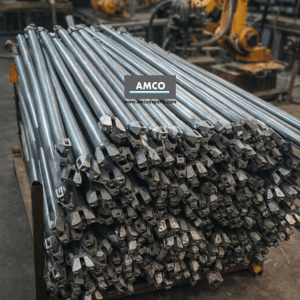

Need Ringlock scaffolding for sale or bulk Ring Lock Ledgers?
AMCO Exports supplies manufacturer-direct Ringlock components with PAN India delivery and export packing.
