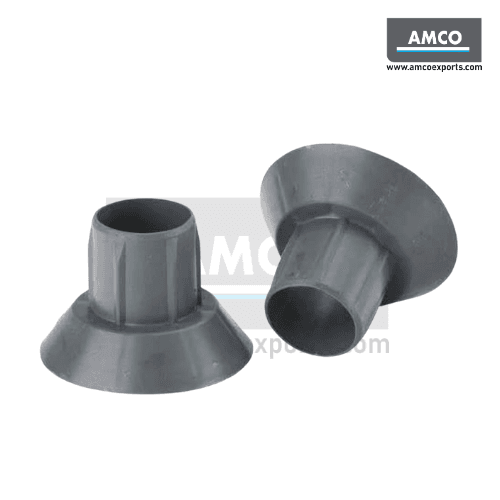

What is a Tie Rod PVC Cone?

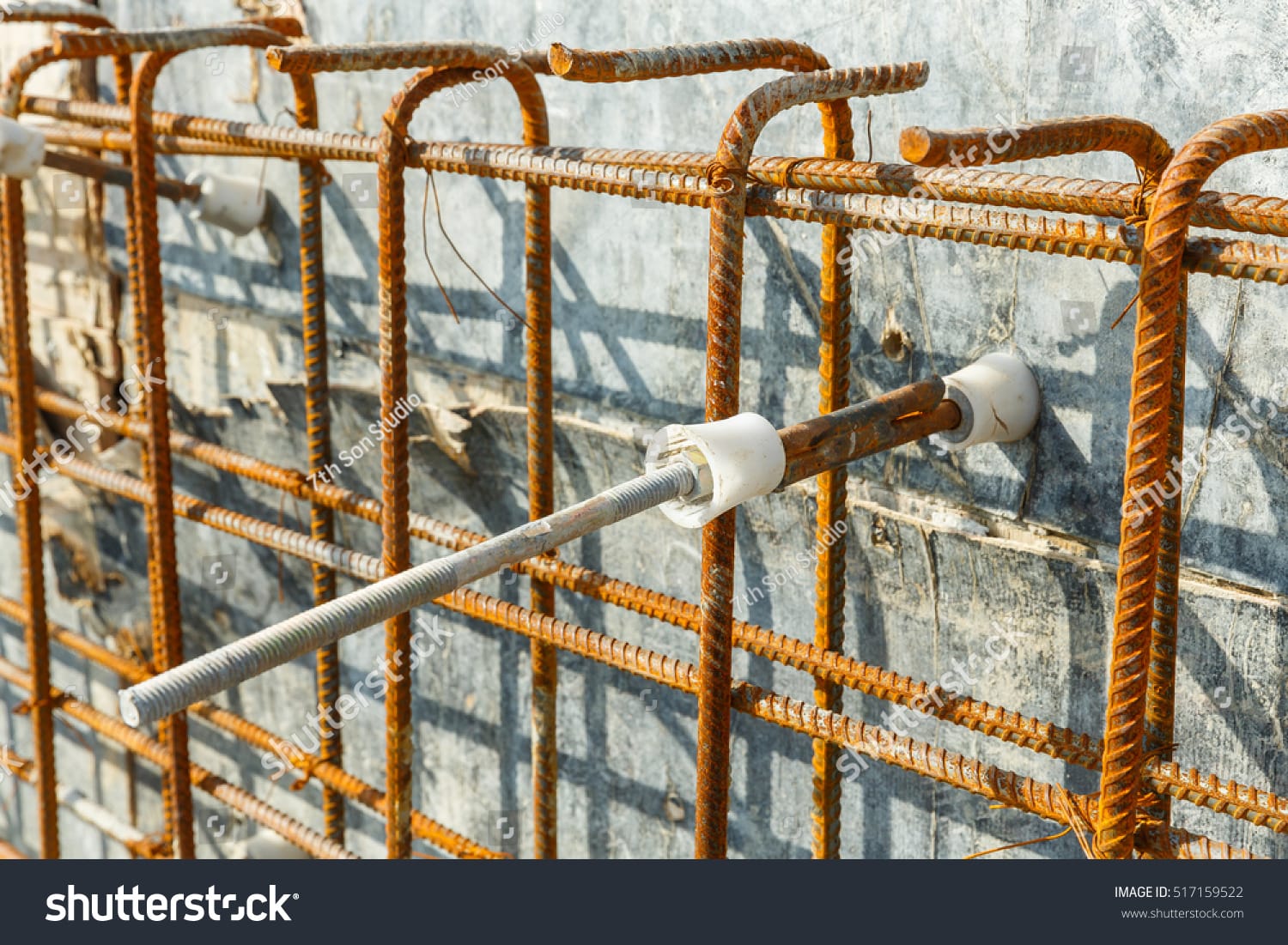

Tie rod PVC cone plays an essential role in RCC shuttering and formwork systems. It seals tie rods, maintains accurate panel spacing, and creates clean concrete recesses during casting. As a result, contractors achieve smoother finishes and faster rod removal after curing.
Explore our formwork accessories, including tie rods, wing nuts, PVC cones, and shuttering hardware for dependable concrete formwork .Tie Rod PVC Cones are used with Tie Rod systems, Wing Nuts, and Formwork Combi Plates in concrete shuttering.
Available Tie Rod PVC Cone Sizes (20mm–32mm)
We supply multiple internal diameters to match common tie rod sizes.
-
16mm tie rod → 22mm I.D. cone
-
20mm tie rod → 25mm I.D. cone
-
25mm tie rod → 32mm I.D. cone
For Mivan aluminum formwork, contractors typically choose 4-inch length cones with 22mm or 25mm sleeves. However, we also provide 6-inch and 12-inch options depending on wall thickness.
Technical Specifications of PVC Cone
| Parameter | Specification |
|---|---|
| Product Name | PVC cone for shuttering |
| Material | High-Quality Rigid PVC (Polyvinyl Chloride) |
| Internal Diameter (I.D.) | 20mm, 22mm, 25mm, 32mm |
| Standard Lengths | 4 inch (≈100mm), 6 inch, 12 inch |
| Tapered End Diameter | Approx. 42mm |
| Wall Thickness | 3mm – 6mm |
| Weight Range | 5g – 40g per piece (depends on size & length) |
| Compatible Tie Rod Sizes | 16mm, 20mm, 25mm |
| Common Selection | 16mm rods → 22mm I.D. cone20/25mm rods → 25mm or 32mm I.D. cone |
| Mivan Formwork Use | Typically 4 inch length with 22mm or 25mm sleeve |
| Color Options | Black (standard), Grey, Green, Yellow, White |
| Temperature Resistance | Approx. 60–70°C |
| Application | Concrete shuttering, Mivan formwork, retaining walls, basement walls, foundation slabs |

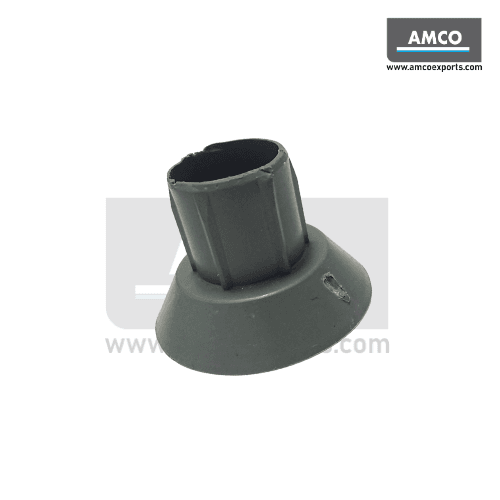

| Variants Available | PVC cone for shuttering 25mm, PVC Cone Plug, PVC Cap for Tie Rod |
| Packing | As per bulk order / project requirement |
| Country of Origin | India |
| Manufacturer | AMCO Exports |
Available Sizes & Options
- 20mm
- 22mm
- 25mm
- 32mm
- Length: 4″ to 12″
Key Benefits of PVC Cone in Formwork
- Clean concrete finish
- Easy tie rod removal
- Prevents slurry leakage
- Reduces repair work
- Reusable and cost-effective
Applications of PVC Cone in Formwork
- Wall shuttering
- Column formwork
- Slab construction
- Mivan aluminum formwork
- Infrastructure projects
PVC Cone vs Water Stopper in Formwork
| Feature | PVC Cone | Water Stopper |
|---|---|---|
| Function | Creates recess | Prevents leakage |
| Reuse | Temporary | Permanent |
| Use case | Easy rod removal | Waterproofing |
| Cost | Lower | Higher |
Why Contractors Use Tie Rod PVC Cone
- Ensures clean and professional concrete finish
- Makes tie rod removal faster and easier
- Prevents slurry leakage during pouring
- Reduces post-construction repair work
- Cost-effective for bulk projects
Price & Bulk Supply
- Manufacturer since 1989
- Consistent quality production
- Bulk ready stock
- PAN India + export supply
- Factory-direct pricing
Why Contractors Use Tie Rod PVC Cone
Tie rod PVC cone price depends on size, length, and quantity.
📞 Call / WhatsApp: +91 98888 82322
📧 amcosales1@gmail.com
Explore our formwork accessories, including tie rods, wing nuts, PVC cones, and shuttering hardware for dependable concrete formwork
Follow AMCO Exports
Instagram: https://www.instagram.com/amcoexports/
LinkedIn: https://www.linkedin.com/in/amcoexports/
FAQ
Q1. What is a PVC cone used for in shuttering?
Ans : A PVC cone is used in formwork systems to seal tie rod ends, maintain spacing between shuttering panels, prevent slurry leakage, and create clean recesses in concrete after de-shuttering.
Q2. Which PVC cone size is used for a 16mm tie rod?
Ans : Typically, a 22mm internal diameter PVC cone is used with 16mm tie rods in shuttering systems.
Q3. What are the standard sizes available for tie rod PVC cones?
Ans : Common PVC cone sizes include 20mm, 22mm, 25mm, and 32mm internal diameter, with standard lengths of 4 inch, 6 inch, and 12 inch depending on formwork thickness.
Q4. What is the price of tie rod PVC cones?
Ans : The price of PVC cones depends on the cone diameter, length, wall thickness, color, and order quantity. Contractors usually request quotations for project pricing.
Q5. Do you supply PVC cones in bulk across India?
Ans : Yes. AMCO Exports supplies tie rod PVC cones in bulk with PAN India delivery and export support.
