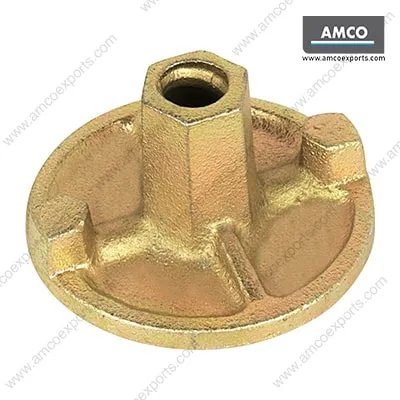

Anchor Nut for Tie Rod (2 Wing & 3 Wing) – 90mm / 100mm / 130mm | Manufacturer & Supplier India
Anchor Nut for Tie Rod is a heavy-duty locking component used in formwork and shuttering systems to secure tie rods during concrete pouring. Manufactured from high-strength MS steel, AMCO anchor nuts provide strong grip, accurate alignment, and reliable performance on construction sites.
AMCO Exports manufactures 2 Wing and 3 Wing Anchor Nuts in 90mm, 100mm, and 130mm
sizes. These are widely used in column shuttering, slab shuttering, wall shuttering, beam formwork, scaffolding
and heavy RCC shuttering systems.
What is an Anchor Nut in Formwork?
In civil engineering shuttering, an anchor nut is used to:
- lock and tighten the tie rod from outside the formwork
- prevent shuttering movement during vibration and concrete pouring
- maintain proper alignment and reduce bulging
- transfer load safely through waller plates and shuttering plates
Anchor Nut Sizes Available (90mm / 100mm / 130mm)
AMCO Exports supplies anchor nuts in standard construction sizes:
- 90mm Anchor Nut – available in 2 Wing / 3 Wing
- 100mm Anchor Nut – available in 2 Wing / 3 Wing
- 130mm Anchor Nut – available in 3 Wing only (heavy duty)
These sizes fit most tie rod shuttering systems used on Indian construction sites.
Anchor Nut for Tie Rod – Sizes & Specifications
| Anchor Nut Size | Wing Type Available | Compatible Tie Rod OD | Weight Range | Common Use |
|---|---|---|---|---|
| 90mm Anchor Nut | 2 Wing / 3 Wing | 15mm / 17mm / 20mm | 330g – 500g | Slab shuttering, wall shuttering |
| 100mm Anchor Nut | 2 Wing / 3 Wing | 15mm / 17mm / 20mm | 400g – 800g | Column shuttering, beam formwork |
| 130mm Anchor Nut | 3 Wing only (HD) | 17mm / 20mm | 700g – 1kg | Heavy RCC, high-rise shuttering |
Note: Weight range depends on casting weight and batch specification. Minor variations may occur.
Anchor Nut – New Size / Updated Weight
Updated variants now available for bulk supply:
-

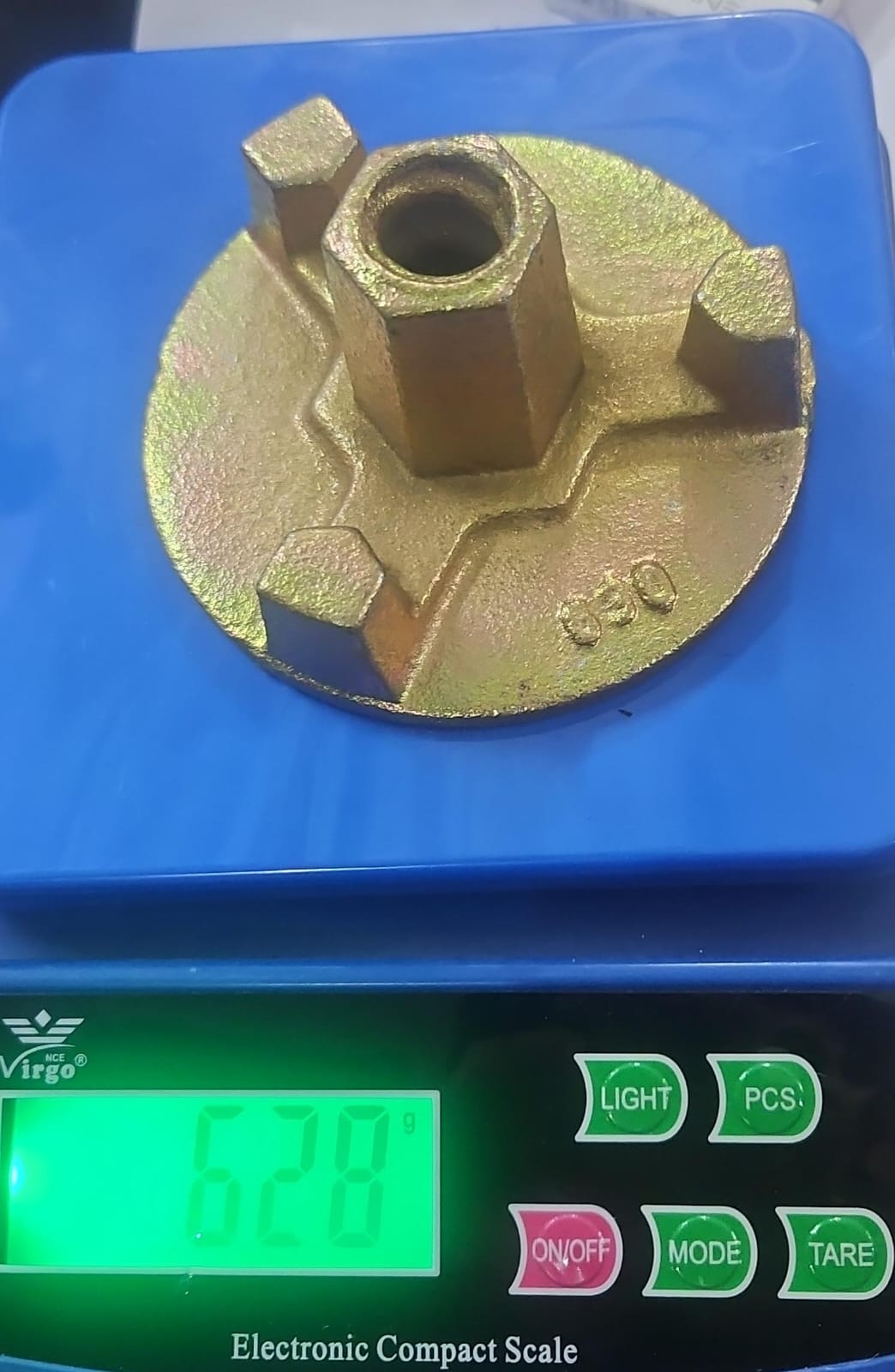

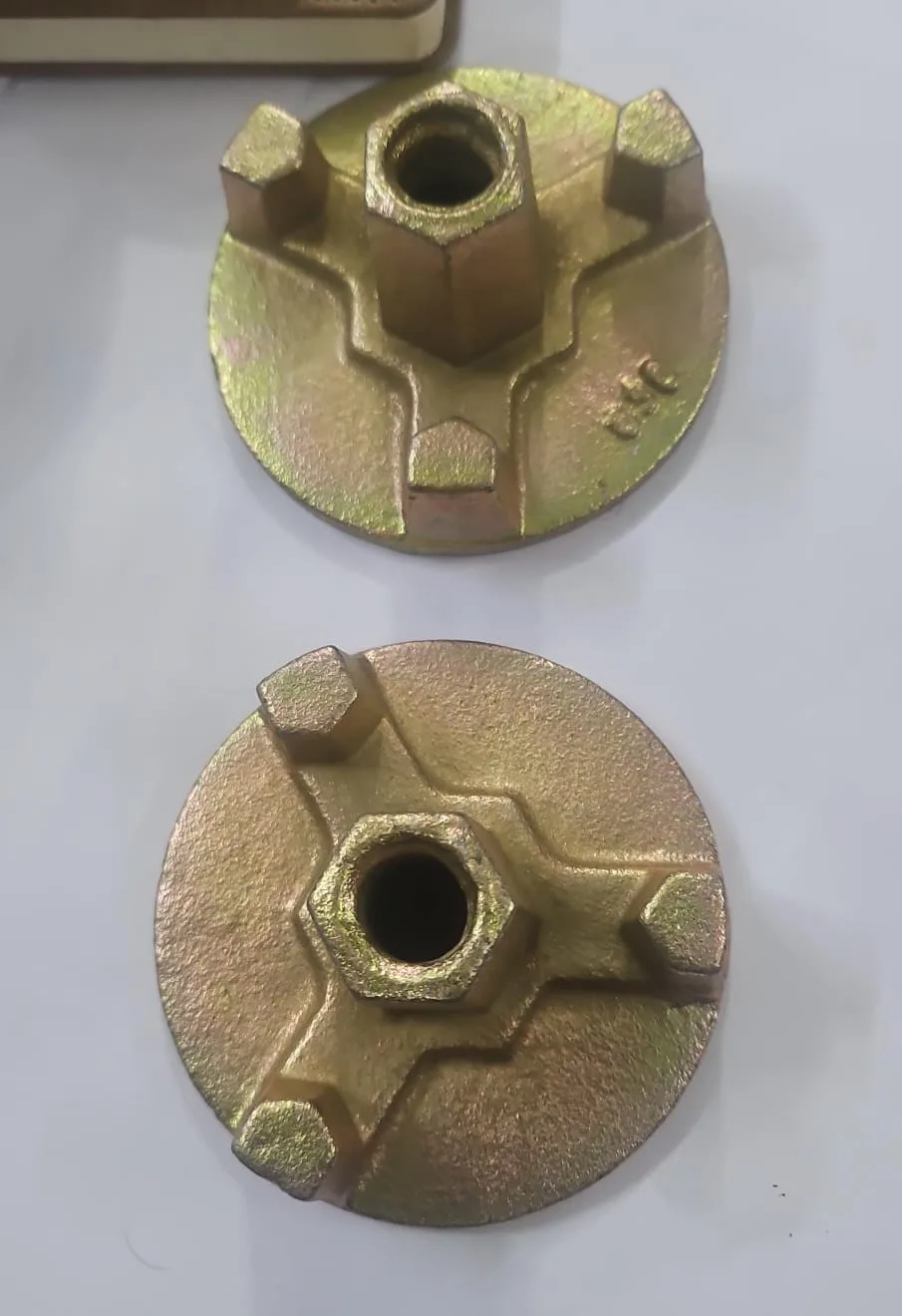

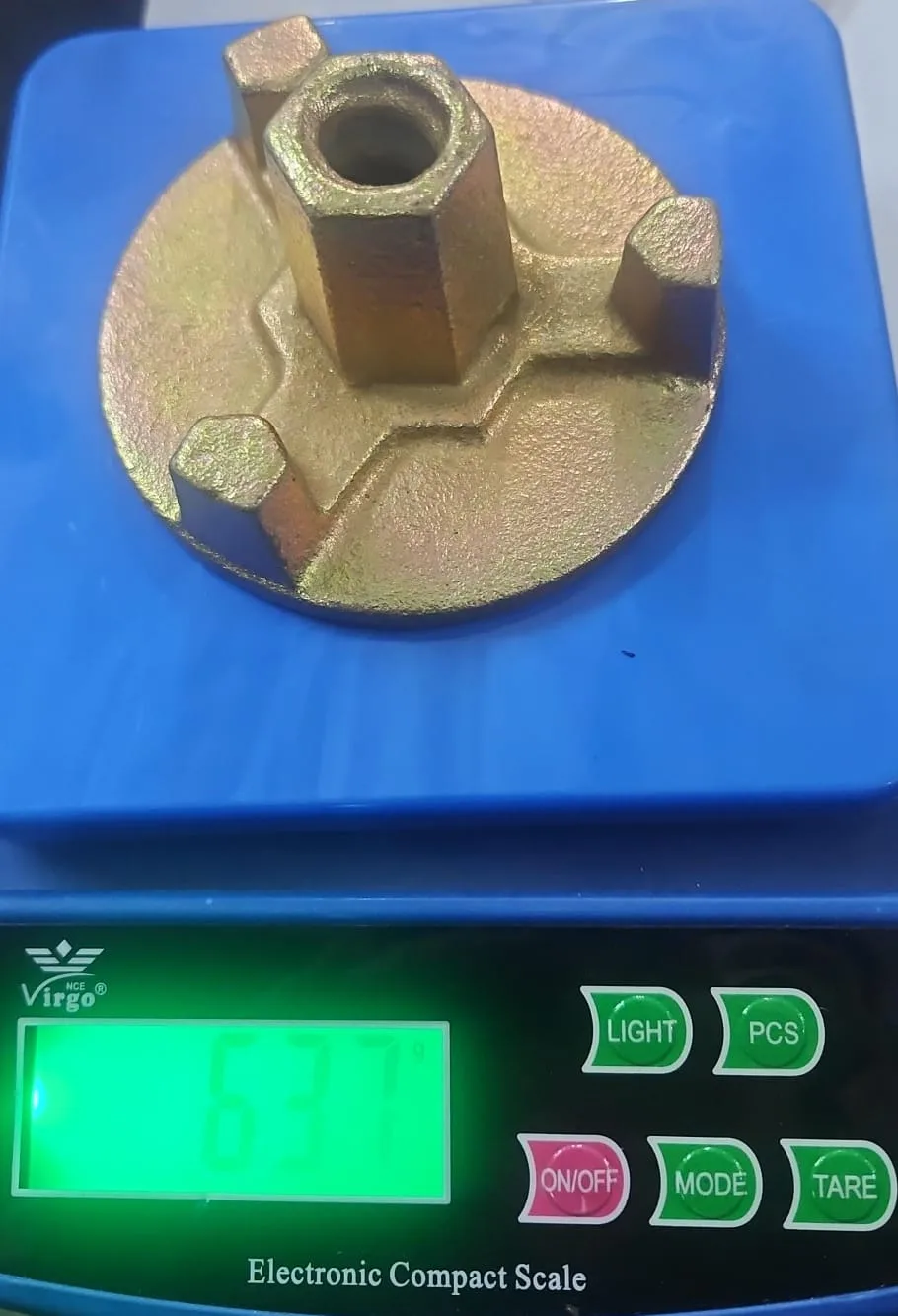

Anchor Nut 100mm (3 Wing) – Updated weight range: 628g – 637g
-

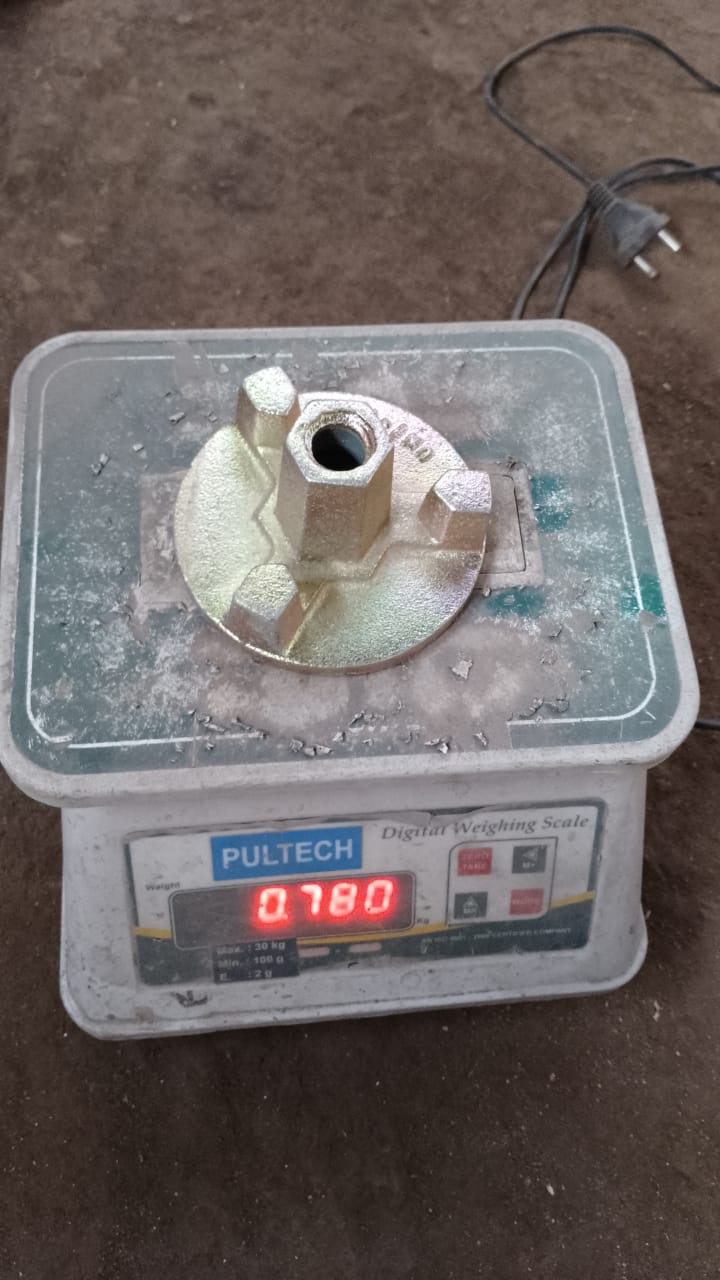

Anchor Nut 100mm (3 Wing) Heavy Variant – Updated weight: 780g
-
Anchor Nut 90mm (3 Wing) – Weight: 400g
-
Anchor Nut 105mm Diameter (3 Wing) – Weight: 700g
✅ This helps Google understand “new variant” + matches search intent.
| Variant | Size | Type | Updated Weight |
|---|---|---|---|
| Anchor Nut | 90mm | 3 Wing | 400g |
| Anchor Nut | 100mm | 3 Wing | 628g – 637g |
| Anchor Nut | 100mm | 3 Wing Heavy | 780g |
| Anchor Nut | 105mm | 3 Wing | 700g |
Anchor Nut Types – 2 Wing vs 3 Wing
Contractors choose anchor nut type based on concrete pressure and project load requirements.
2 Wing Anchor Nut
- easy and quick tightening
- economical for regular shuttering work
- suitable for medium load formwork
- available in 90mm and 100mm

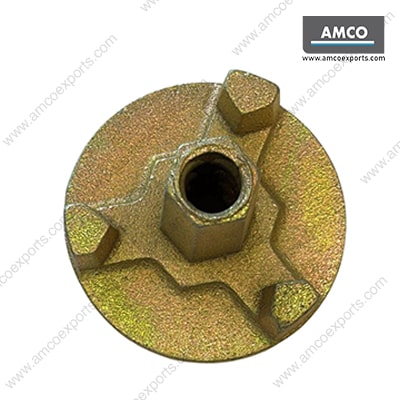

3 Wing Anchor Nut
- stronger grip and higher stability
- better torque distribution during tightening
- ideal for heavy RCC shuttering
- available in 90mm, 100mm, and 130mm (heavy duty)
2 Wing vs 3 Wing Anchor Nut
| Specification | 2 Wing Anchor Nut | 3 Wing Anchor Nut |
|---|---|---|
| Grip Strength | Good | Higher |
| Load Capacity | Medium | Heavy Duty |
| Tightening | Fast | Strong + stable torque |
| Available Sizes | 90mm, 100mm | 90mm, 100mm, 130mm |
| Weight Range | 330g – 600g | 400g – 1kg |
| Best Use | Regular formwork | Heavy RCC / infrastructure work |
Anchor Nut Weight Range (330g to 1kg)
Anchor nut weight varies according to size and type:

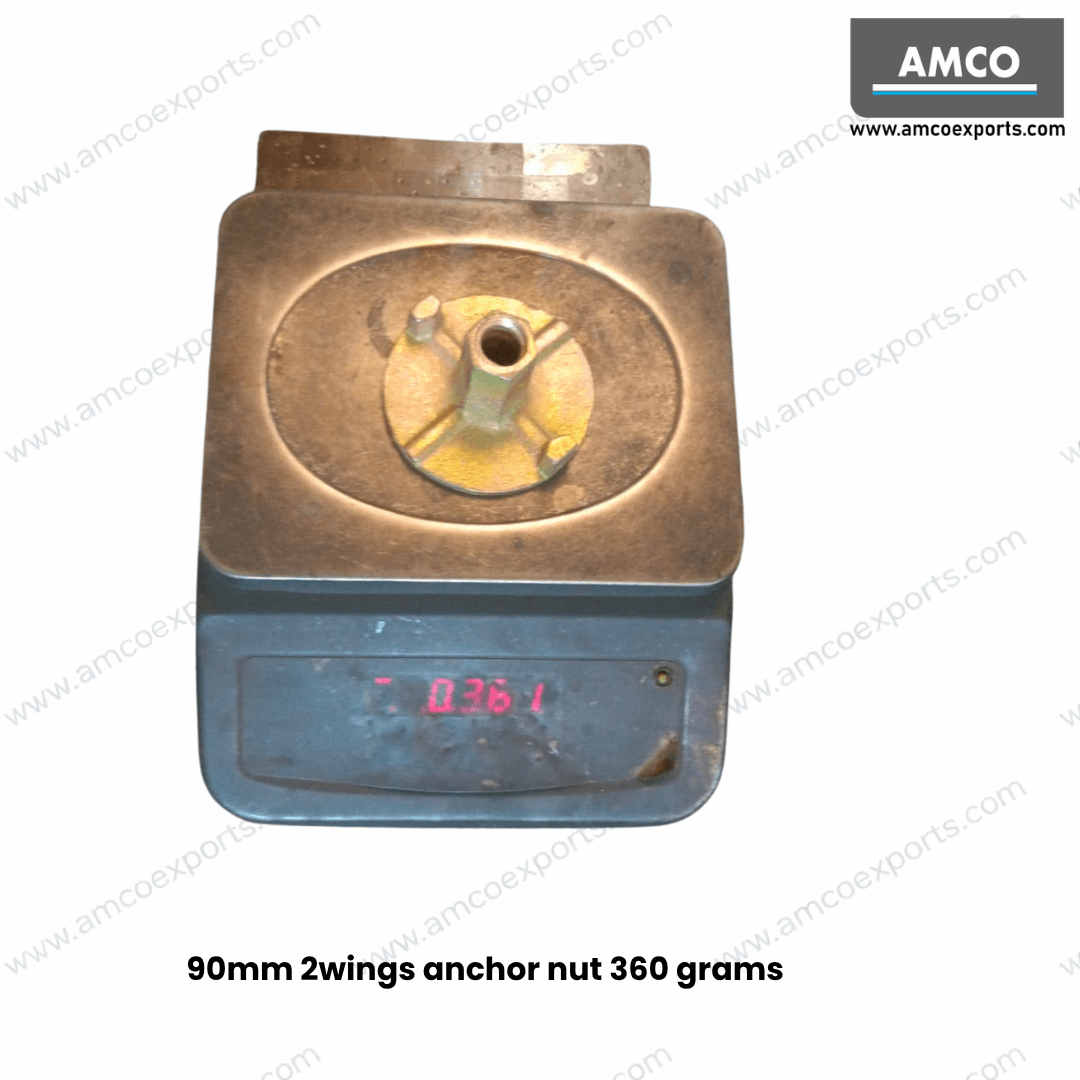

- 90mm: approx. 330g – 500g
- 100mm: approx. 400g – 800g
- 130mm: approx. 700g – 1kg
Heavier anchor nuts provide stronger locking in heavy duty shuttering and high pressure concrete pours.
Anchor Nut for Tie Rod Compatibility
Many buyers search Anchor Nut 16mm. In shuttering, this typically means compatibility with 16mm tie rod systems.
Our anchor nuts are compatible with standard tie rod outer diameters:
- 15mm OD
- 17mm OD
- 20mm OD
This covers most formwork and shuttering tie rod applications.
Applications of Anchor Nut for Tie Rod
Anchor nuts are widely used in:
- tie rod shuttering systems
- formwork locking and alignment
- column, slab and beam shuttering
- wall shuttering and panel tightening
- scaffolding and formwork assemblies
- infrastructure and industrial RCC projects
Anchor Nut Price
Pricing depends on size, wing type, casting weight, finish and
bulk quantity. Contact us for project-wise quotation.
Contact AMCO Exports – Anchor Nut Manufacturer & Supplier India
For bulk supply and project enquiries:
- Anchor Nut 90mm (2 Wing / 3 Wing)
- Anchor Nut 100mm (2 Wing / 3 Wing)
- Anchor Nut 130mm (3 Wing Heavy Duty)
Anchor Nut Price (100mm / 90mm / 105mm)
Anchor Nut price depends on size, weight variant, finish, and order quantity.
