What is a Forged Swivel Coupler?
A forged swivel coupler is a scaffolding tube connector designed to join two scaffold tubes at any required angle. Unlike fixed couplers that create rigid 90-degree joints, a swivel scaffold coupler rotates freely, making it ideal for diagonal bracing, cross bracing, curved structures, and non-standard scaffold layouts.
Common industry names include:
- Swivel scaffolding clamp
- Double swivel coupler
- Drop forged swivel clamp
- All-angle coupler
- Universal scaffolding clamp
- Rotating pipe clamp
- Diagonal brace coupler
- Rotation scaffolding clamp
These couplers are essential for creating safe and stable scaffolding structures in demanding construction environments.
Available Forged Swivel Coupler Sizes
AMCO Exports manufactures Drop Forged Swivel Couplers in standard, reducing, and heavy-duty configurations to suit different scaffold tube diameters used in construction, industrial maintenance, bridge construction, shipbuilding, oil & gas, and infrastructure projects. Our swivel scaffolding couplers provide secure 360° adjustable connections with excellent load-bearing capacity, dimensional accuracy, and long service life.
| Coupler Variant | Tube Size (OD) | Common Name | Typical Application |
|---|---|---|---|
| Standard Swivel Coupler | 40 × 40 mm | Forged Swivel Coupler 40×40 | Industrial scaffolding, steel structures and maintenance platforms |
| Reducing Swivel Coupler | 40 × 50 mm | Forged Swivel Coupler 40×50 | Connecting 40 mm and 50 mm scaffold tubes |
| Standard Swivel Coupler | 48.3 × 48.3 mm | Swivel Scaffolding Clamp | Tube & Coupler Scaffolding and Diagonal Bracing |
| Reducing Swivel Coupler | 48.3 × 60.3 mm | Double Swivel Coupler | Mixed Tube Scaffolding and Industrial Projects |
| Standard Swivel Coupler | 50 × 50 mm | Forged Swivel Coupler 50×50 | Steel Structure and Industrial Scaffolding |
| Heavy Duty Swivel Coupler | 60.3 × 60.3 mm | Heavy Duty Swivel Clamp | Bridge Construction, Infrastructure and Shoring Systems |
40 × 40 mm Forged Swivel Coupler
The 40×40 mm Forged Swivel Coupler connects two 40 mm scaffold tubes at any required angle. Contractors use this coupler in industrial scaffolding, maintenance platforms, warehouse structures, temporary staging, and steel fabrication projects. AMCO Exports manufactures it from premium drop forged steel and offers Self Finish, Electro Zinc Plated (EZP), Zinc Plated, and Hot Dip Galvanized (HDG) finishes for excellent corrosion resistance.
40 × 50 mm Forged Swivel Coupler
The 40×50 mm Forged Swivel Coupler, also known as a 40×50 Reducing Swivel Coupler, securely joins 40 mm and 50 mm scaffold tubes at any angle. Contractors choose this coupler for industrial scaffolding, bridge construction, refineries, power plants, and temporary support systems that require different tube diameters. AMCO Exports supplies this model in EZP, Zinc Plated, Self Finish, and Hot Dip Galvanized (HDG) finishes.
48.3 × 48.3 mm Swivel Scaffolding Clamp
The 48.3 × 48.3 mm Forged Swivel Coupler serves as the international standard for tube-and-coupler scaffolding systems. Contractors rely on this swivel scaffolding clamp for diagonal bracing, cross bracing, access scaffolds, façade scaffolding, and general construction projects.

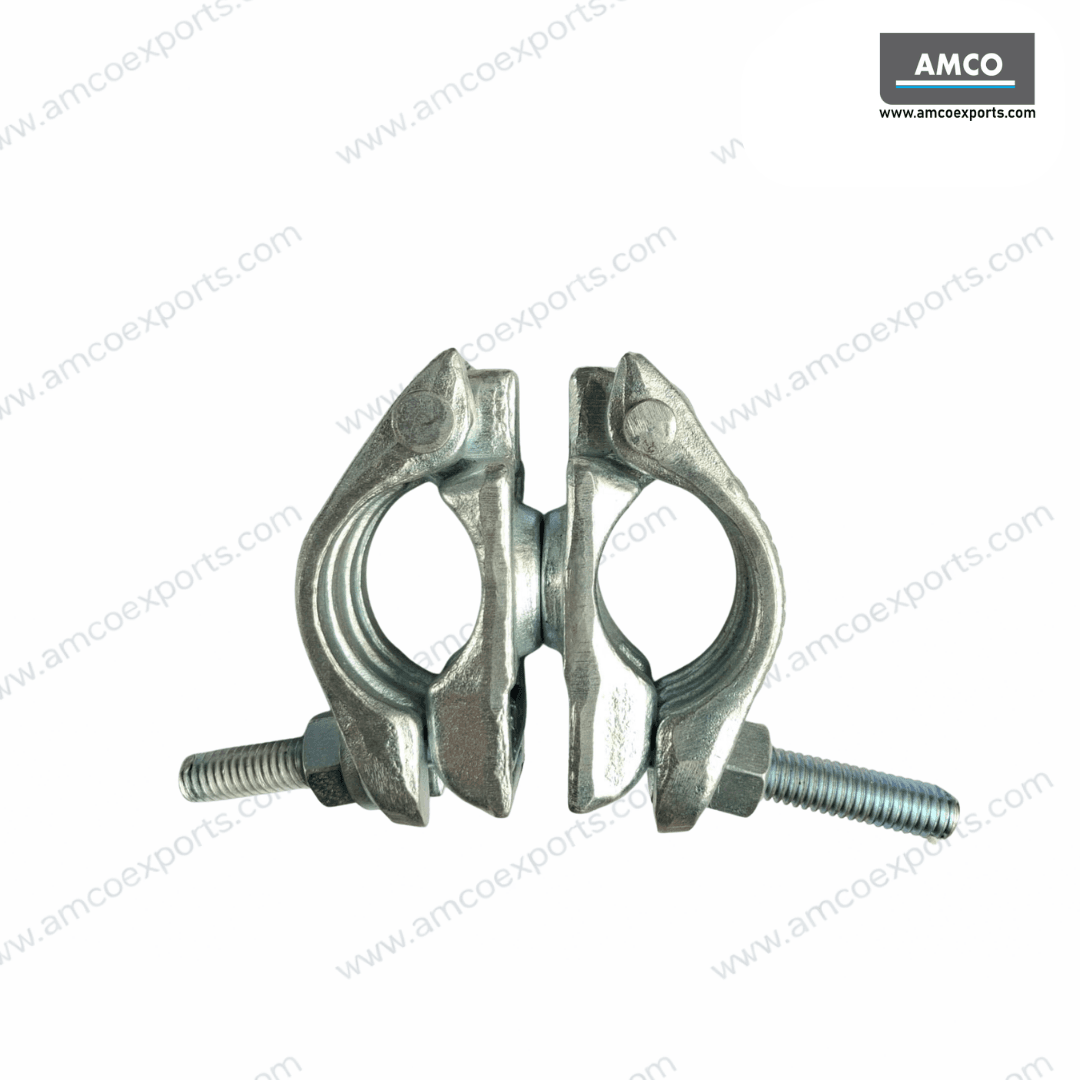

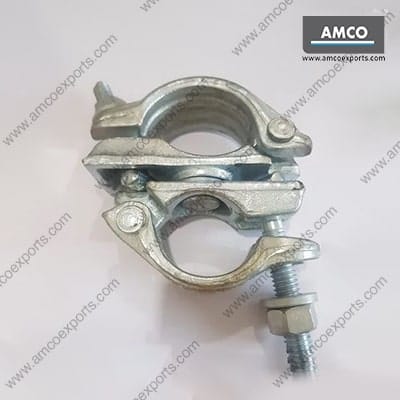

48.3 × 60.3 mm Double Swivel Coupler
The 48.3 × 60.3 mm Double Swivel Coupler securely connects standard scaffold tubes with heavy-duty tubes in mixed scaffold systems. Engineers specify this all-angle coupler for industrial plants, infrastructure projects, formwork systems, and temporary support structures that demand flexibility and strength.
50 × 50 mm Forged Swivel Coupler
The 50×50 mm Forged Swivel Coupler creates a secure rotating connection between two 50 mm scaffold tubes. Contractors install this coupler in industrial scaffolding, staging systems, structural steel projects, and maintenance platforms that require reliable tube connections.
60.3 × 60.3 mm Heavy Duty Swivel Coupler
The 60.3 × 60.3 mm Heavy Duty Forged Swivel Coupler supports bridge construction, heavy-duty scaffolding, shoring systems, industrial maintenance, and infrastructure projects. Its high-strength drop forged steel construction delivers superior load capacity, durability, and long-term performance under demanding site conditions.
International Swivel Coupler Size Chart
AMCO Exports supplies EN74 swivel couplers and BS1139 swivel scaffolding clamps for global scaffolding standards and regional construction requirements. Our scaffolding tube connectors are available in standard, reducing, and heavy-duty sizes compatible with international tube dimensions used across Europe, the Middle East, Asia-Pacific, and Africa.
| Tube Size Standard | Compatible Tube O.D. | Typical Application | International Standard |
|---|---|---|---|
| Global Standard | 48.3 mm × 48.3 mm | Tube and coupler scaffolding, ledger bracing, access systems | EN74, BS1139, AS1576 |
| Japanese / Korean Standard | 48.6 mm × 48.6 mm | Frame and tube scaffolding systems | JIS A 8952, KS |
| Traditional Frame Standard | 42.7 mm × 42.7 mm | Frame scaffolding and lightweight access systems | EN74 |
| Heavy-Duty Shoring | 60.3 mm × 60.3 mm | Formwork, shoring towers, industrial maintenance | EN74 |
| Bridge Shoring | 76.0 mm × 76.0 mm | Bridge construction and infrastructure support | EN74, BS1139 |
| Industrial & Sidewalk Systems | 89.0 mm × 89.0 mm | Heavy industrial structures, shipyards, oil & gas facilities | EN74, BS1139 |
| Reducing Swivel Coupler | 48.3 mm × 60.3 mm | Transition between standard and heavy-duty scaffold systems | EN74 |
Note: The 48.3 mm × 48.3 mm forged swivel coupler remains the most widely used global standard for tube-and-coupler scaffolding systems. The 48.3 mm × 60.3 mm swivel scaffolding clamp is commonly selected for industrial projects requiring mixed tube connections and heavy-duty support structures.
Need help selecting the right coupler size? Explore our Right Angle vs Swivel Coupler Guide or browse our complete range of Scaffolding Couplers & Clamps.
Applications of Swivel Scaffolding Clamp
Diagonal Bracing and Cross Bracing Systems
A diagonal brace coupler enables secure angled connections that improve scaffold rigidity and structural stability.
Industrial Maintenance and Plant Shutdown Projects
The rotating pipe clamp design supports complex industrial layouts and confined workspaces.
Bridge, Metro and Infrastructure Construction
Heavy-duty EN74 swivel couplers are widely used in infrastructure projects requiring flexible support systems.
Formwork, Shoring and Temporary Support Structures
The all-angle coupler allows efficient connections in shoring towers and formwork applications.
Why Choose a Drop Forged Swivel Coupler?
- Higher load capacity than pressed couplers
- Better resistance to vibration and wear
- Precision-machined threads for secure locking
- Long service life in harsh environments
- Corrosion-resistant EZP and HDG finishes
- Reliable performance under heavy loads
- Suitable for repeated site use
Related Scaffolding Products
- Forged Right Angle Coupler
- Right Angle vs Swivel Coupler Guide
- Types of Scaffolding Couplers
- Scaffolding Couplers & Clamps
- Adjustable Steel Props
- Cuplock Scaffolding System
International Standards Reference
FAQ – Swivel Coupler Uses and Specifications
What is a forged swivel coupler used for?
A forged swivel coupler connects two scaffold tubes at adjustable angles for diagonal bracing, cross bracing, and non-standard scaffold configurations.
What tube sizes are available?
Standard sizes include 48.3 × 48.3 mm, 48.3 × 60.3 mm, and 60.3 × 60.3 mm. Custom heavy-duty sizes are available on request.
What is the difference between a swivel coupler and a right angle coupler?
A swivel coupler creates adjustable-angle connections, while a right angle coupler forms a fixed 90-degree connection.
Which standards do your swivel couplers comply with?
AMCO Exports manufactures swivel couplers according to EN74, BS1139, AS1576, and project-specific requirements.
What finishes are available?
Electro zinc plated (EZP), hot dip galvanized (HDG), and zinc-plated finishes are available.
Do you supply bulk and export orders?
Yes, we supply bulk quantities with export-grade packaging, OEM branding, and documentation support.
